Set Up Bluetooth Gamepad

If you have a bluetooth gamepad as shown in the picture below, you can connect it either by a graphical interface or command line interface.

(Graphical) Connection via System Settings

1. Enter System Settings

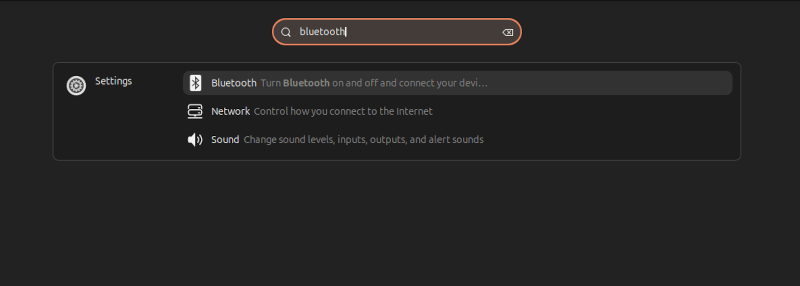

Press Super/WIN/Cmd key or left click the top-right corner of the Ubuntu desktop to bring out the system search bar. Search "bluetooth" then left-click to enter the Bluetooth page in the Settings interface.

search_bluetooth

bluetooth_device_list

2. Start Pairing

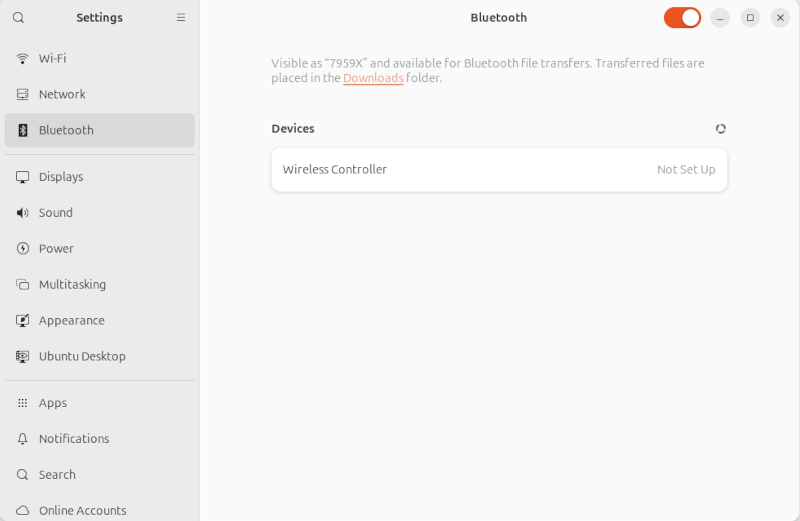

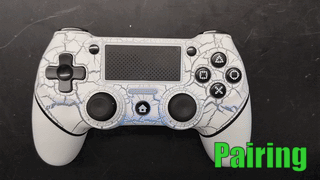

On gamepad, press and hold down the HOME and the SHARE button together, until the gamepads's LED starting to make double blinks pattern. The double blinking pattern indicates the gamepad has entered the pairing mode. The connectable gamepad will be appearing in the Devices list, named as "Wireless Controller".

Warning

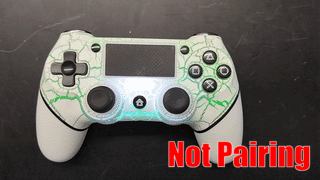

If the user release the SHARE button too quick or only pressed down the HOME button, the LED will make single blinks and the user will not be able to view/connect the gamepad. Wait for the single blinking to be stopped by itself, then try again by pressing and holding down the HOME and the SHARE button together.

gamepad_pairing gamepad_not_pairing

3. Connect Bluetooth Device

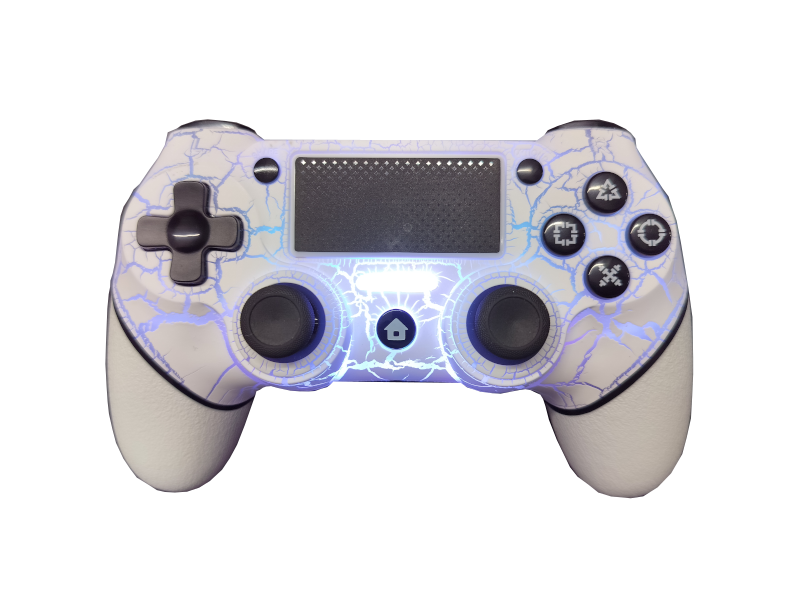

Left-click the "Wireless Controller" and wait the device's status turned into "Connected". The LED on the gamepad will be staying stabled on.

gamepad_connected

(CLI) Connection via Command Line

There are chances your RPi is running in the headless mode (no monitor attached). And you can connect to a bluetooth device through the command line tool: bluetoothctl

1. Remote Log In

In a terminal window on Host Machine, use ssh to log into RPi.

ssh <username>@<ip_address>

2. Start Pairing

press and hold down the HOME and the SHARE button together, until the gamepads's LED starting to make double blinks pattern.

3. bluetoothctl Usage

  1. In the remote terminal type: bluetoothctl. You'll notice the command prompt changed to [bluetooth]#.
  2. Enter scan on to start discovering all the bluetooth devices nearby.
  3. The gamepad ready for pairing should be listed as [NEW] Device <MAC_address> Wireless Controller.
  4. Enter pair <MAC_address> to pair and auto connect to the bluetooth gamepad (You can use tab to autocomplete the <MAC_address>).
  5. Enter exit or simply press Ctrl+d to quit bluetoothctl interface.

Assign User account to input Group

ROS 2 needs to access the bluetooth gamepad under /dev/input. Our user account is unlikely having the permission to visit such a location, because the default Ubuntu installation did not assign the $USER account to the input group. We have to enter following command in a terminal then reboot the computer.

sudo usermod -aG input $USER

After reboot, we can check if $USER is assigned to input by command:

groups
# you'll end up getting something like:
# <username> adm sudo ... input

You can verify gamepad's availability using a ROS command:

ros2 run joy joy_enumerate_device
