Install and use homer_bringup package on Raspberry Pi

homer_bringup is a ROS 2 package for interfacing HomeR's hardware.

Success

Setting up this package on RPi only.

Install homer_bringup Package

mkdir -p ~/homer_ws/src  # create a workspace
cd ~/homer_ws/src  # navigate into `src/` under the workspace
git clone https://github.com/linzhanguca/homer_bringup.git  # download package
cd ~/homer_ws  # navigate to workspace root
rosdep install -y --from-paths src --ignore-src --rosdistro $ROS_DISTRO  # let `rosdep` install missing dependencies
colcon build  # build all packages in workspace
source ~/homer_ws/install/local_setup.bash  # register all resources in the current workspace
echo "source ~/homer_ws/install/local_setup.bash" >> ~/.bashrc  # auto register

Tip

adding source ~/homer_ws/install/local_setup.bash to the end of ~/.bashrc file, so that the homer_bringup will be always available.

Usage

  • To only start the homer_interface node:
ros2 run homer_bringup pico_interface
  • To launch a collection of nodes
ros2 launch homer_bringup homer_launch.py

Tip

You can start driving HomeR using a gamepad if using ros2 launch ... command.

  • Test drive with keyboard

Open a separate terminal window (can be one on the server):

ros2 run teleop_twist_keyboard teleop_twist_keyboard

Debriefing

pico_interface

The core of homer_bringup package is the pico_interface node which bridges the gap between the motion control and ROS management. It does the following jobs.

  • Sets up the communication between RPi and Pico.
  • Subscribes to the ROS topic: /cmd_vel and transmits linear.x and angular.z values to Pico as the reference/target linear and angular velocity for HomeR.
  • Receives HomeR's motion status including the estimated linear and angular velocity based on the encoder data, accelerometer data (acceleration on 3 axes) and gyroscope data (angular velocity on 3 axes).
  • Constantly updates HomeR's pose using the encoder estimated linear and angular velocity.
  • Publishes Odometry message under the /homer/odom topic, which contains the pose and velocity information.
  • Publishes Imu message under the /homer/imu topic, which contains the data from the MPU6050 sensor.

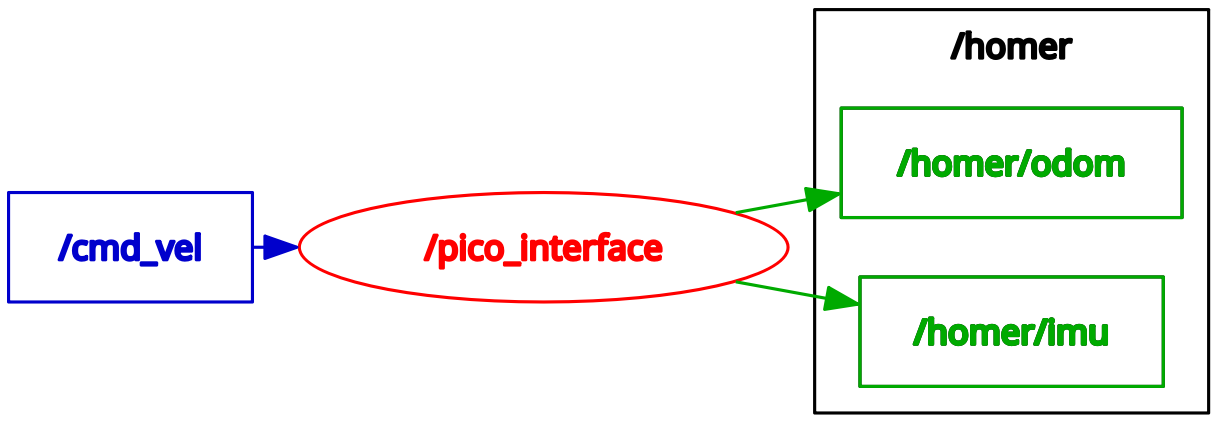

The duties of pico_interface node can be illustrated by the following graph

pico_interface_node

homer_launch.py

homer_bringup provides homer_launch.py for the convenience to launch a collection of useful nodes and frame transformations alongside the pico_interface node. The launch file's duties are listed below.

  • A teleop_twist_joy_node from the teleop_twist_joy package, which publishes the /cmd_vel topic.
  • A customized rplidar_composition node (from rplidar_ros package) publishing the /scan topic.
  • A static transformation between base_link frame and lidar_link frame (will be used for SLAM later).
  • A static transformation between the base_link frame and base_footprint frame (will be used for navigation later).
  • A static transformation between the base_link frame and imu_link frame.
  • An Extended Kalman Filter node from robot_localization package to fuse the encoder data and the IMU data. This node spits out more accurate pose estimation and broadcast the transformations between the odom frame and the base_link frame.

The launch file will construct a more complex system. Use rqt_graph command to view it.
