Motor Control (Pico Carrier) Board Schematic

Overview

The motor control board (MCB) hosts following components and peripherals:

• Raspberry Pi Pico,
• Pololu TB6612FNG dual motor driver carrier
• E-S N20 geared DC motors and encoders
• HC-SR04 ultrasonic distance sensor
• Common cathode RGB LED
• Pull-up resistor for Pico
• Pull-down resistor for Pico

Power Management

The MCB receives two sources of DC power and supply them to the components on the board.

1. 7.4V (nominal) for Pololu TB6612FNG motor driver carrier.
2. 5V for Raspberry Pi Pico (optional), HC-SR04 distance sensor, motor encoders.

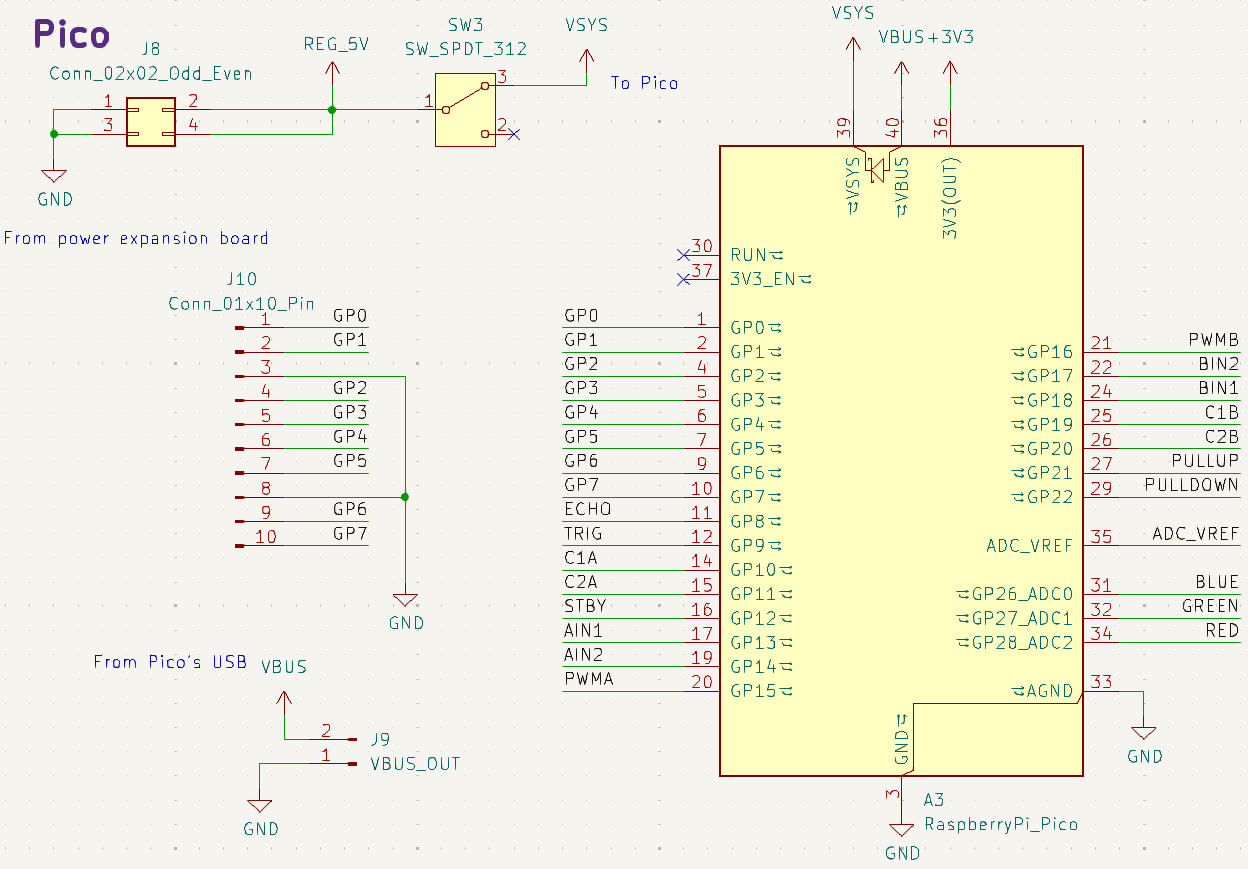

Pico Wiring

• J8 is the 5V input connected to the power expansion board (PEB).
• SW3 is a switch for Pico to select power sources (off: USB, on: PEB)
• J10 provides extra connections to unoccupied GPIOs.

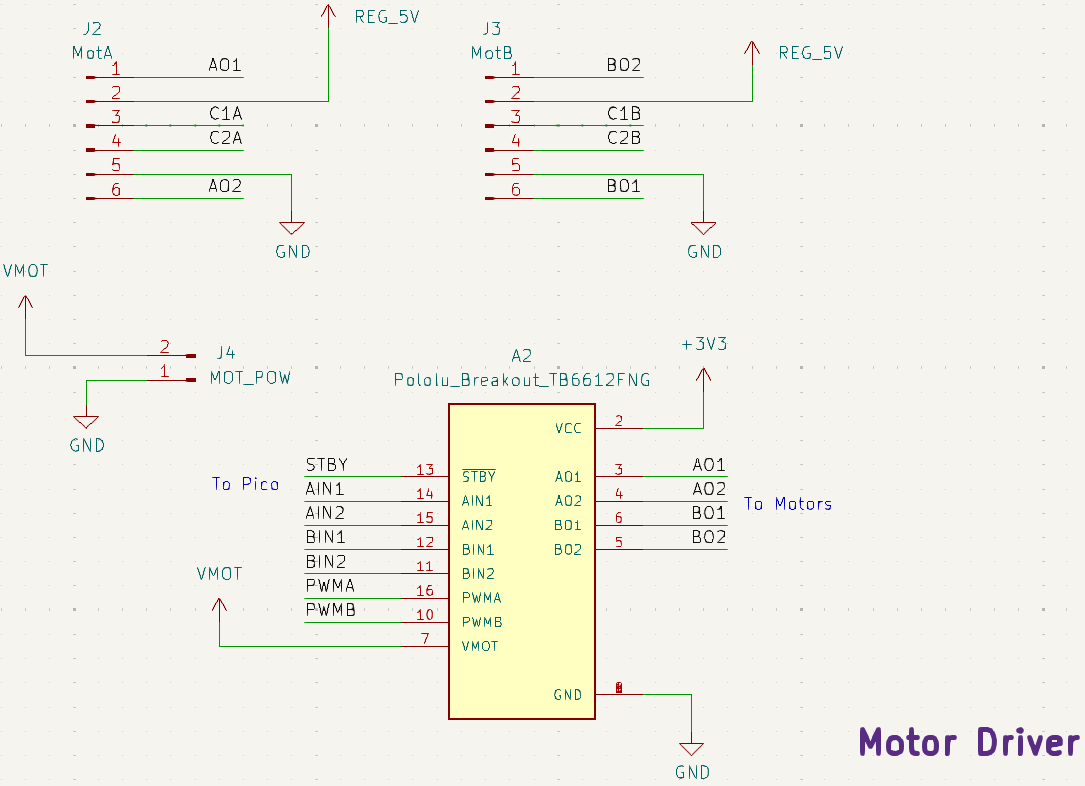

Motor and Motor Driver Wiring

• J4 (MOT_POW) serves 7.4V (nominal) DC to power Pololu TB6612FNG motor driver carrier.
• J2 and J3 provides connections for right and left motor.

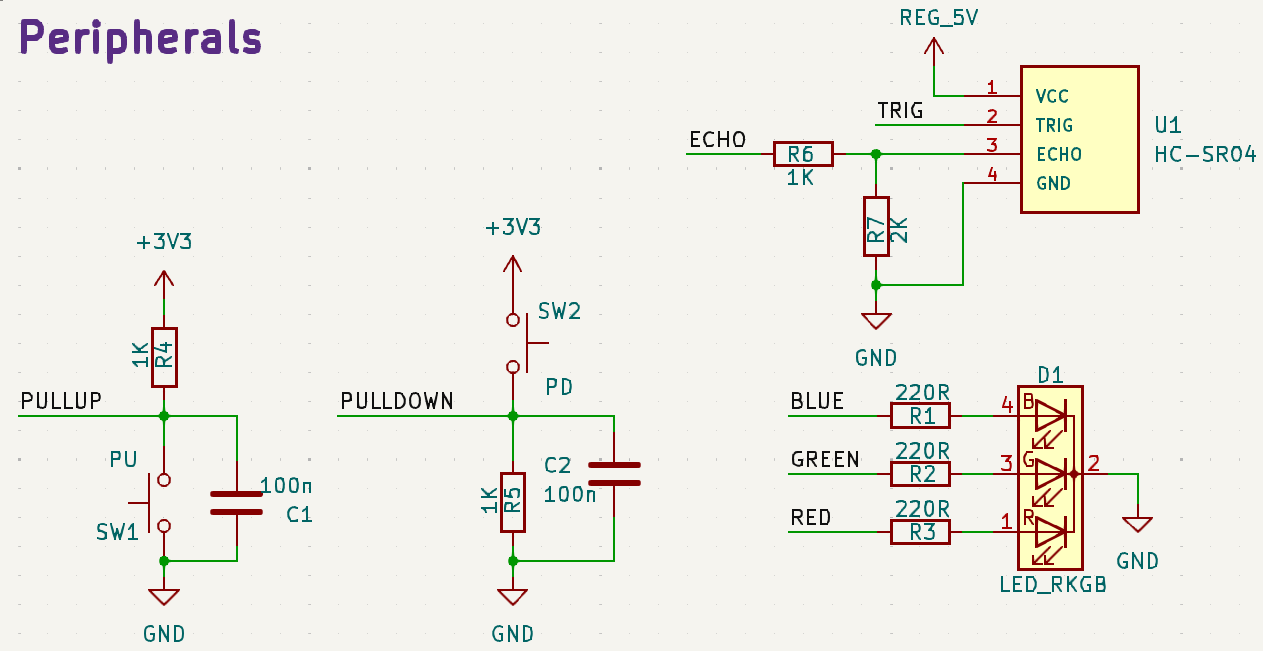

Distance Sensor and Peripherals Wiring

• SW1 needs to be configured to PULLUP, and SW2 needs to be configured to PULLDOWN. Both are debounced.
• ECHO signal from HC-SR04 is 5V, so R6 and R7 are used to level the voltage down to around 3.3V.
