Motor Control Board Soldering Guide

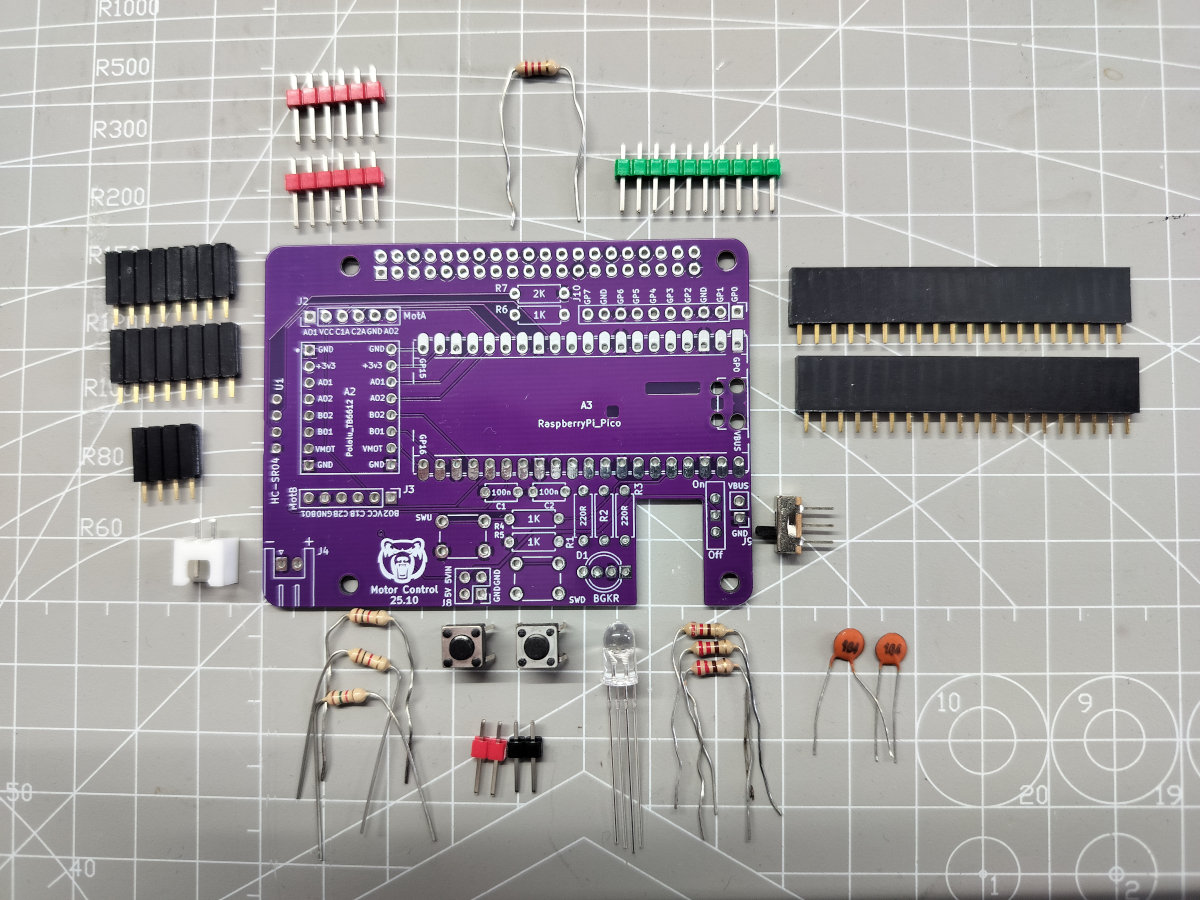

The components on the example board were soldered from short to tall.

This order is recommended.

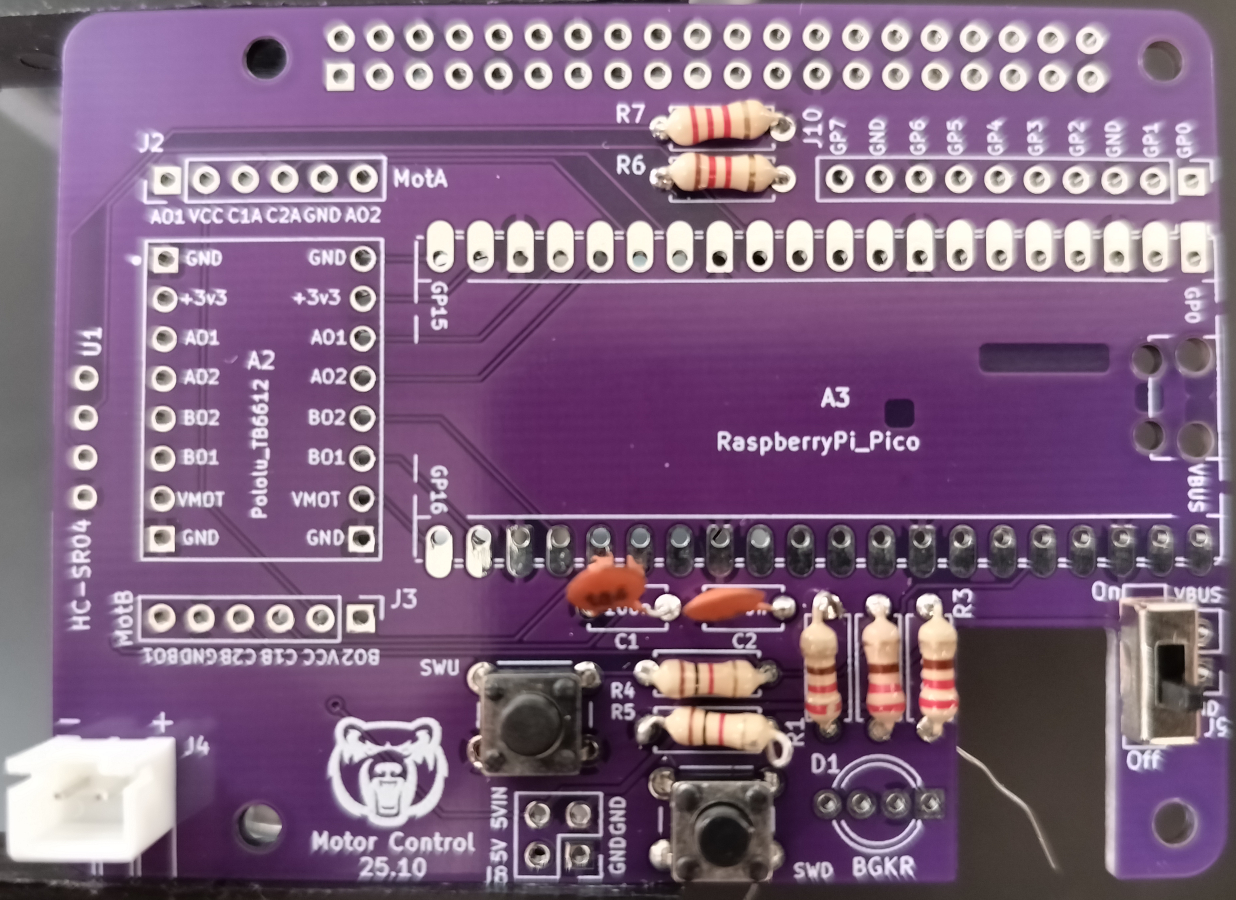

1 Solder Short Components

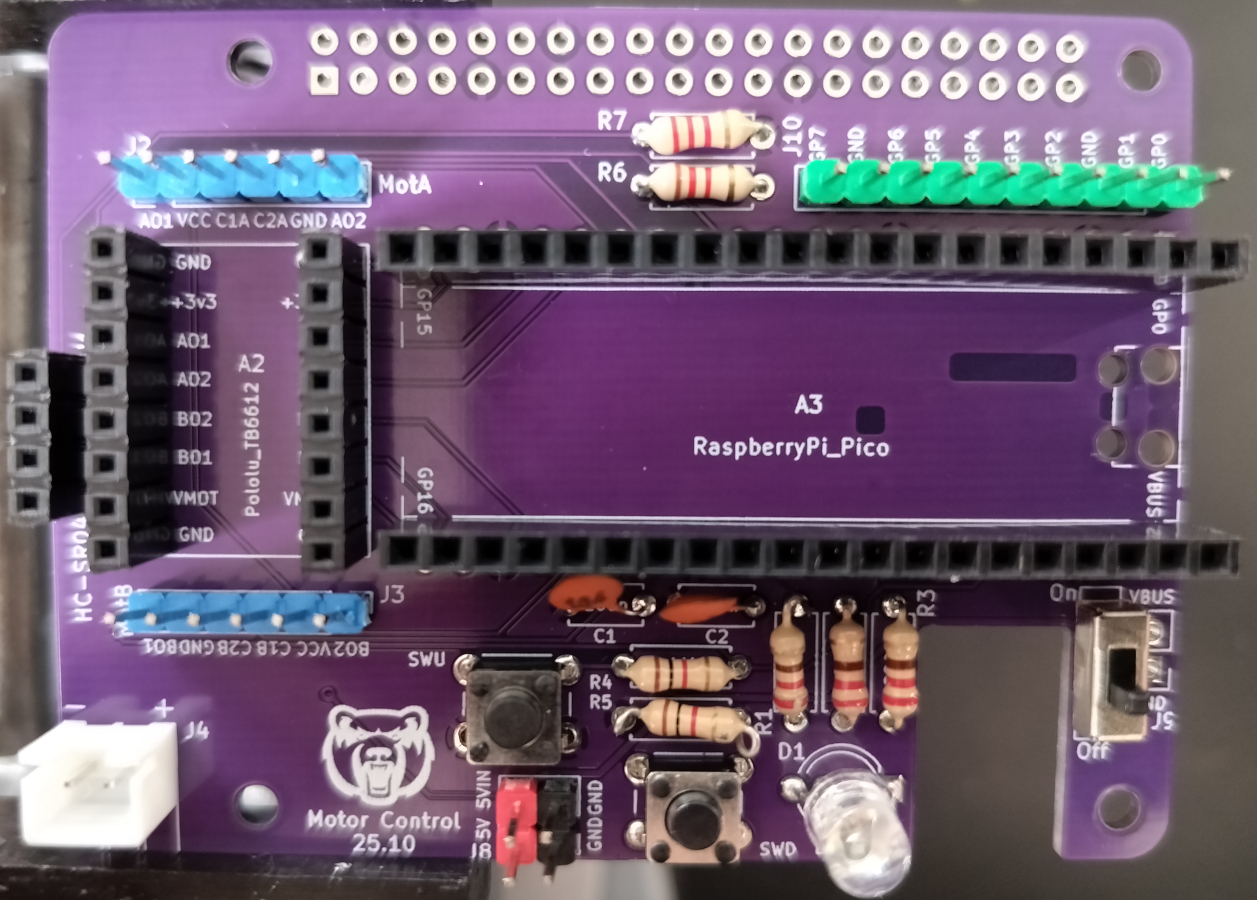

2 Solder Taller Components

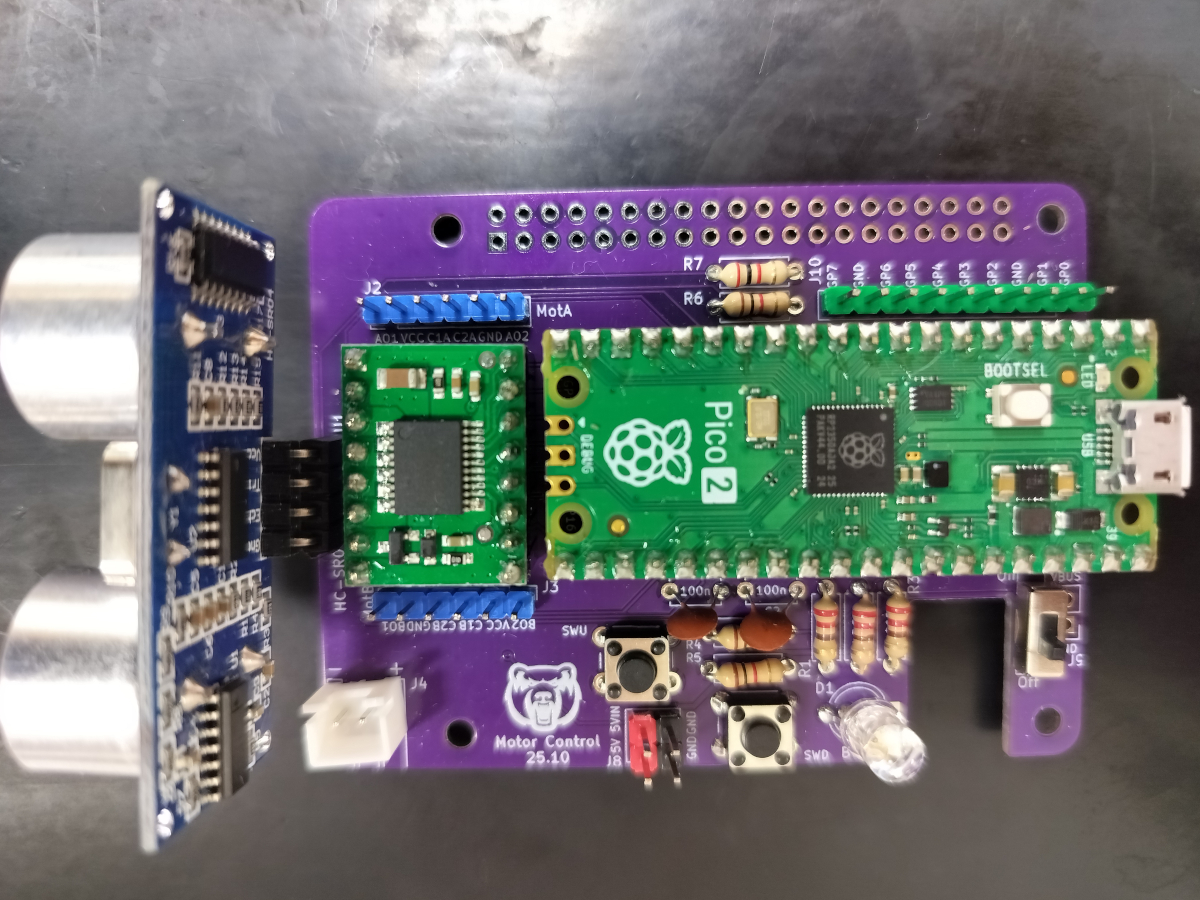

3 Install Boards
