R1B Assembly Guide

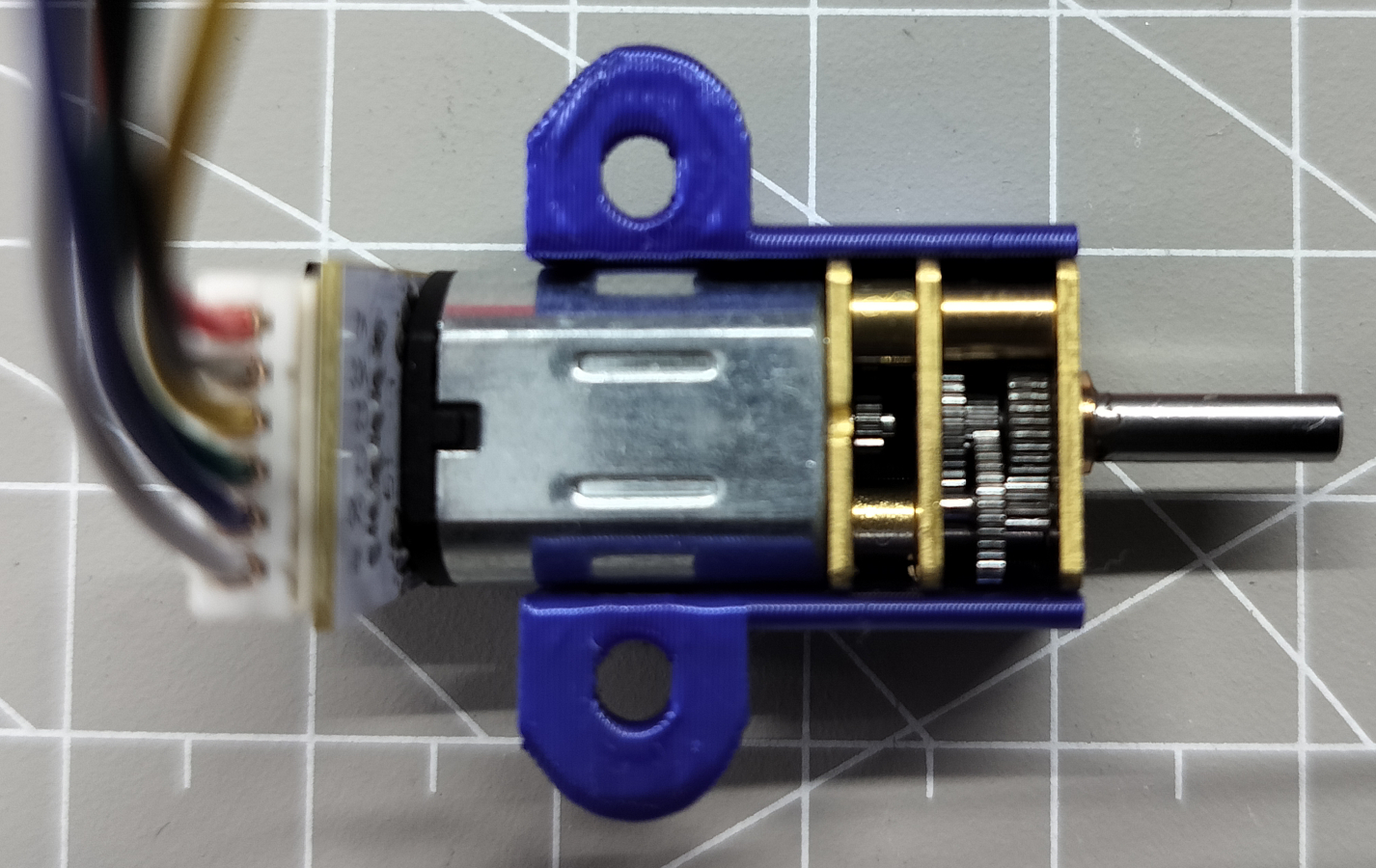

1 Assemble Motor
Align motor and bracket with grooves in the bracket.
2 Attach Motors to Bed

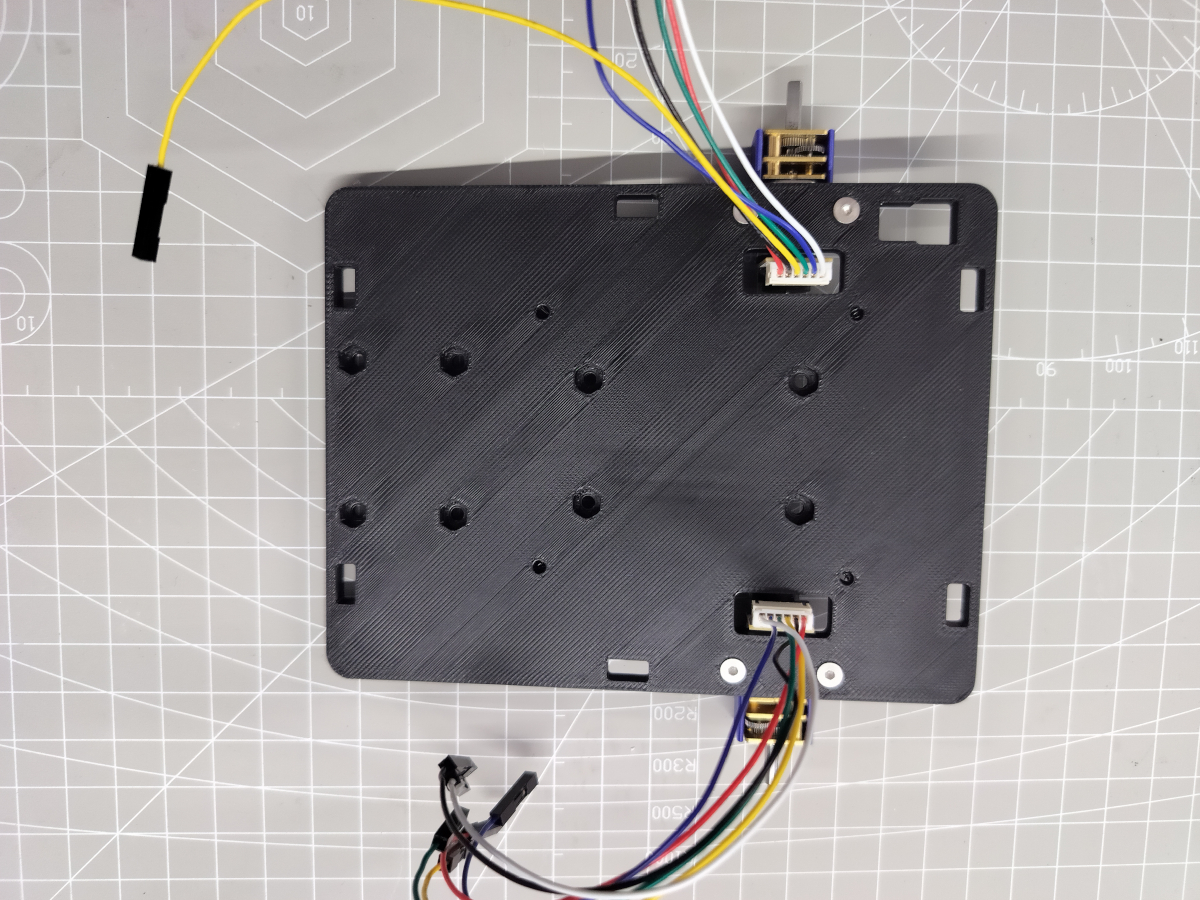

Top View

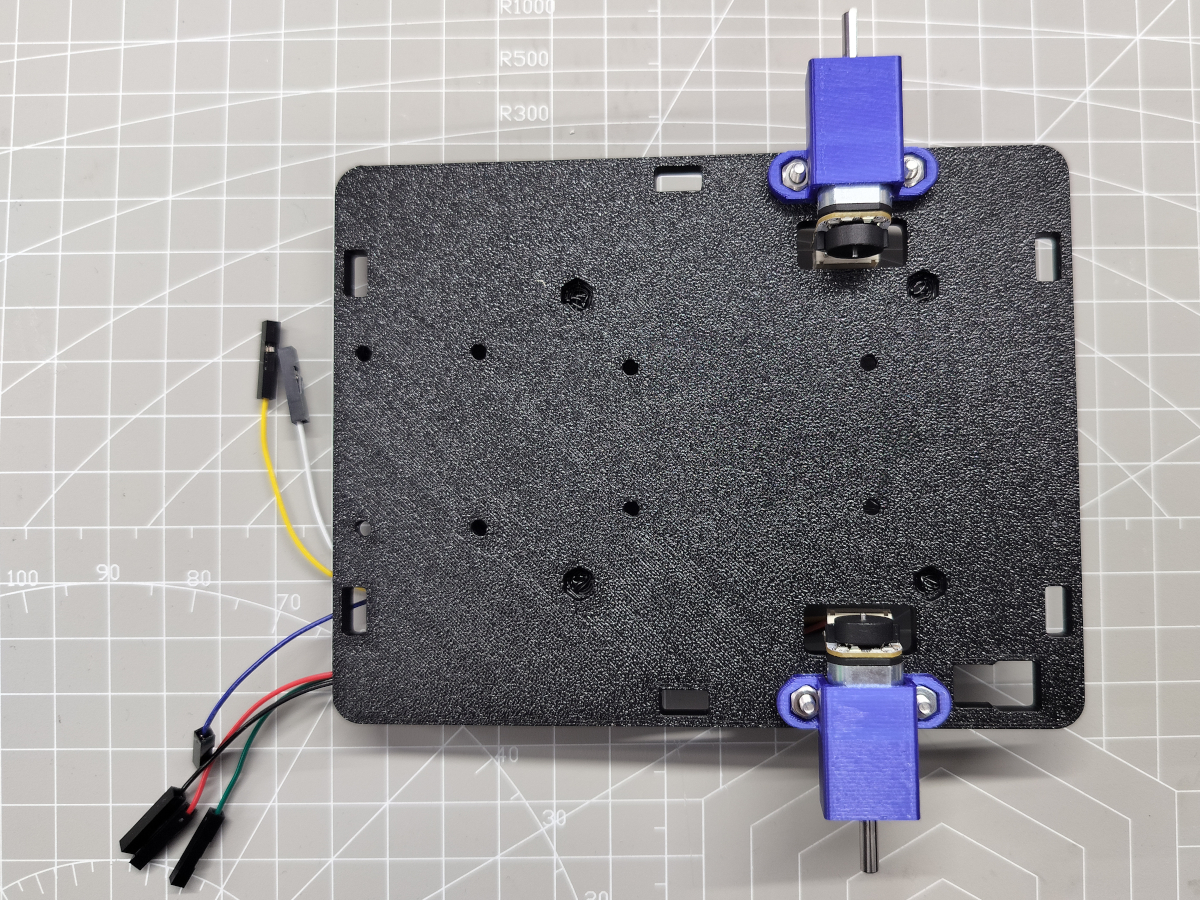

Bottom View

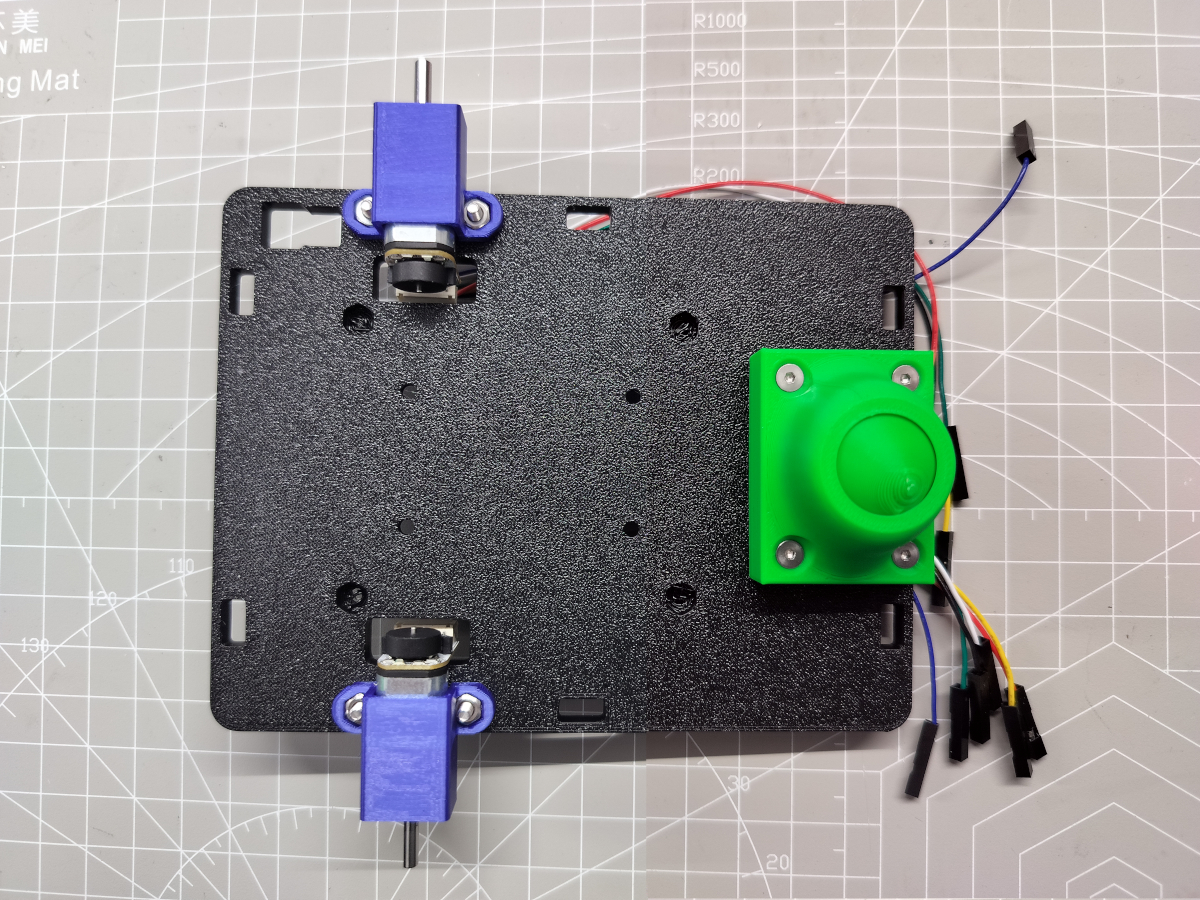

3 Attach Caster Wheel to Bed

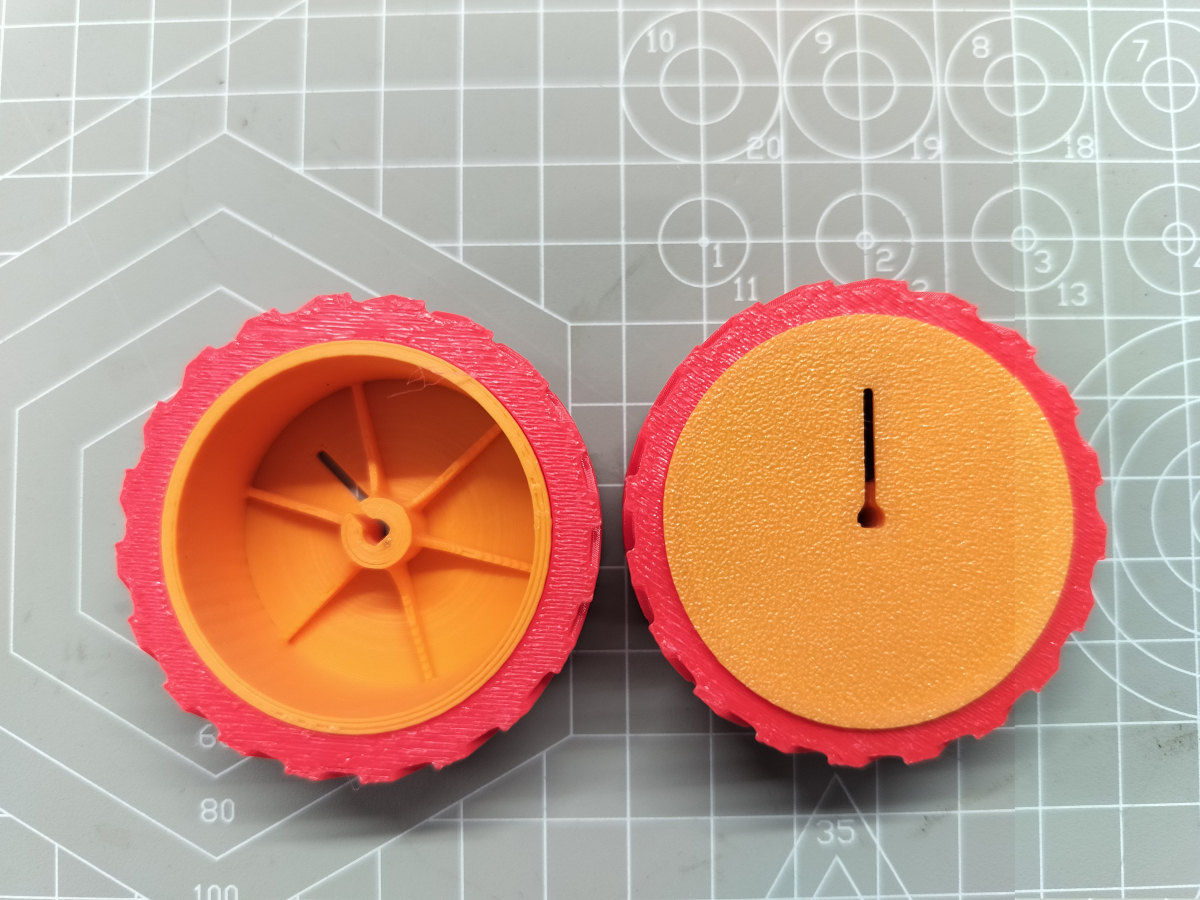

4 Assemble Wheel

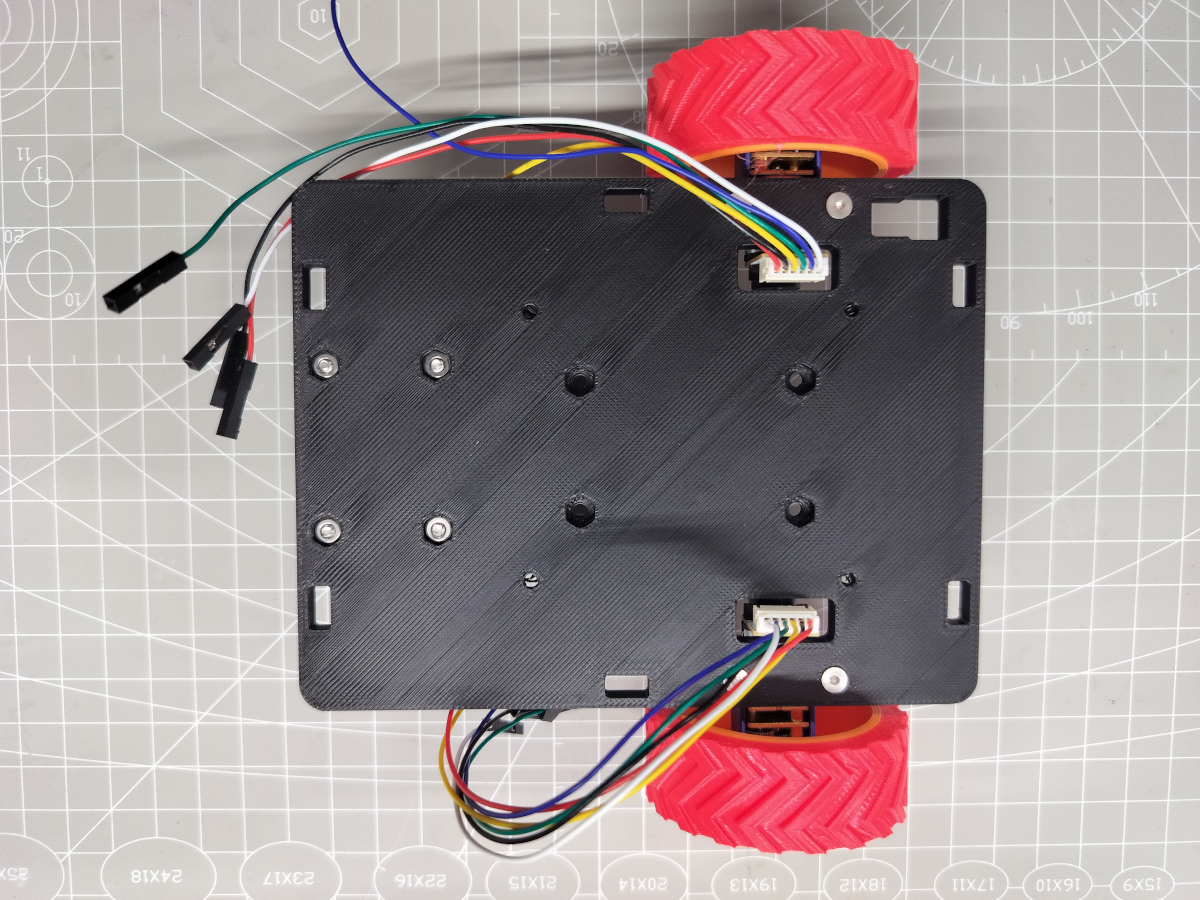

5 Attach Wheels

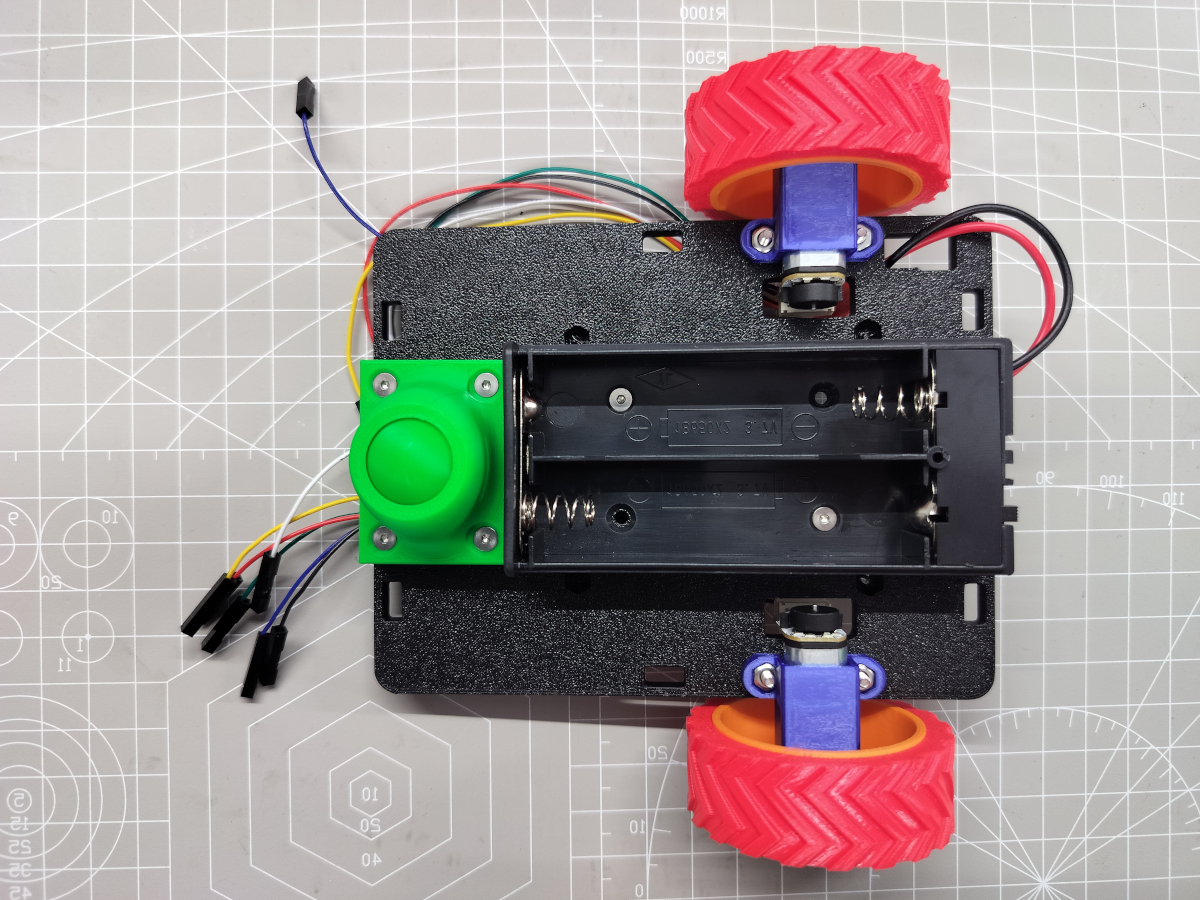

6 Attach Battery Holder
Align motor and bracket with grooves in the bracket.
