Assembly Guide
Prepare Mounting Nuts

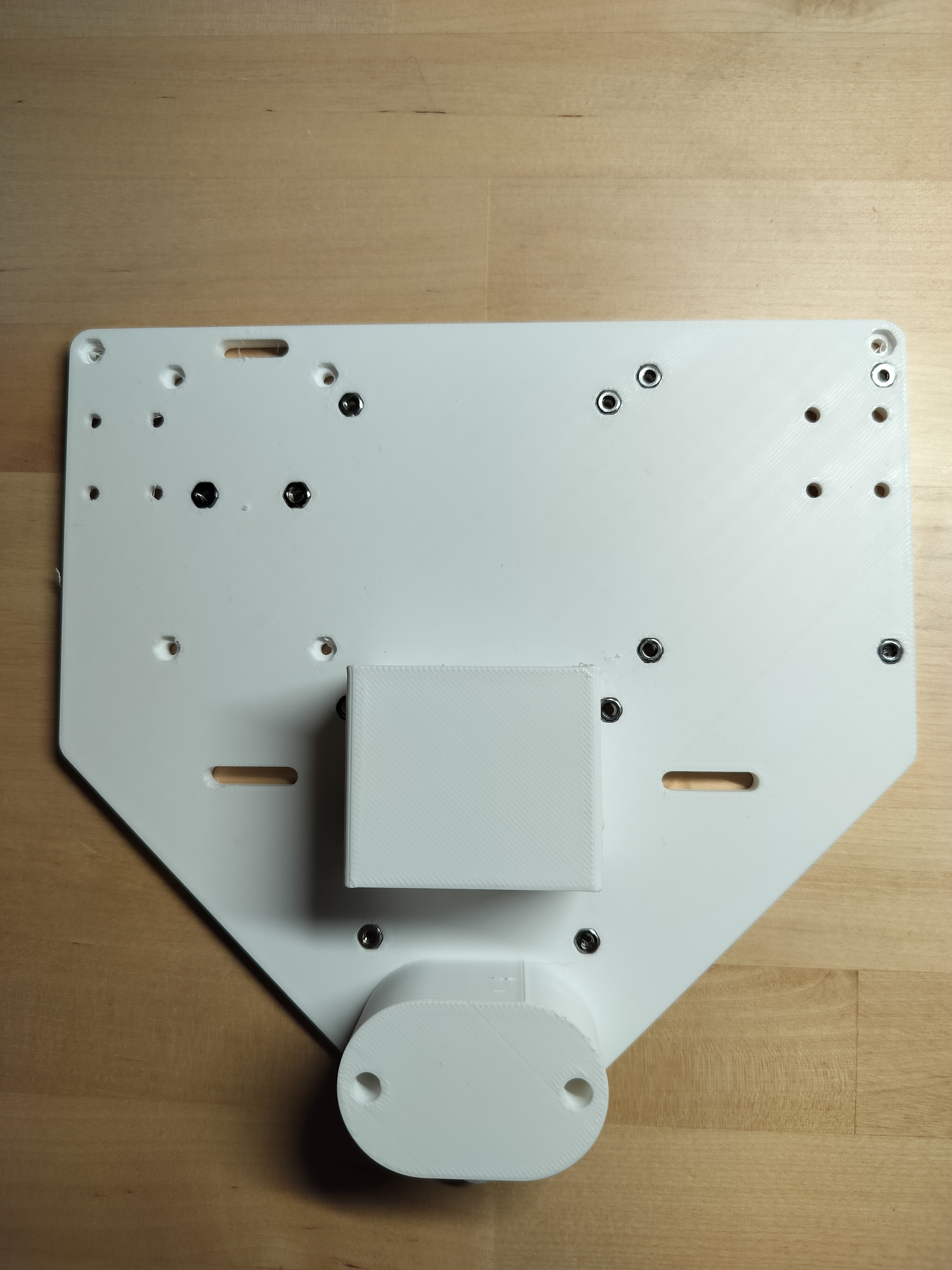

Drop nuts into the hexagonal pockets on the bottom side of the base for later usage.
Part List
Item |
Qty. |
Note |
|---|---|---|
M2.5 Nuts |
10 |
|
M3 Nuts |
5 |
|
M2.5*6 Standoffs |
6 |
|
M2.5*20 Standoffs |
4 |
Drop nuts into the hexagonal pockets on the bottom side of the base for later usage.
Item |
Qty. |
Note |
|---|---|---|
M2.5 Nuts |
10 |
|
M3 Nuts |
5 |
|
M2.5*6 Standoffs |
6 |
|
M2.5*20 Standoffs |
4 |
